Drafting Zip Folder Structure

So what's included in the Check out payload? Let us explain...

What is in my Zip Folder when I check out?

Single Checkout

Zip file contents:
Artefact-Number.LastUploadedNative.Artefact-ID.Filetype
Artefact-Number.CombinedMarkupPreview.Artefact-ID.Filetype
Artefact-Number.Markup_1.Artefact-ID.filetype
Artefact-Number.Markup_2.Artefact-ID.filetype... <-- increment as required
Additional Files (Folder)
     >Artefact-Number.LastFileUploaded.Artefact_ID.Filetype
     >Artefact-Number.LatestApprovedNative.Artefact_ID.Filetype
     >Artefact-Number.LatestApproved.Artefact_ID.Filetype
Artefact-Number_download_transcript.CSV
Readme.txt

Single Checkout (with xrefs)

Zip file contents:
Artefact-Number.LastUploadedNative.Artefact-ID.Filetype
Artefact-Number.CombinedMarkupPreview.Artefact-ID.Filetype
Artefact-Number.Markup_1.Artefact-ID.filetype
Artefact-Number.Markup_2.Artefact-ID.filetype... <-- increment as required
Additional Files (Folder)
     > Artefact-Number.LastFileUploaded.Artefact_ID.Filetype
     > Artefact-Number.LatestApprovedNative.Artefact_ID.Filetype
     > Artefact-Number.LatestApproved.Artefact_ID.Filetype
Xrefs (Folder)
Artefact-Number_download_transcript.CSV
Readme.txt

Bulk Checkout:

Zip file contents:
Artefact-Number.LastUploadedNative.Artefact-ID.Filetype
Artefact-Number.CombinedMarkupPreview.Artefact-ID.Filetype
Artefact-Number.Markup_1.Artefact-ID.filetype
Artefact-Number - AdditionalFiles - Artefact ID (Folder)
     > Additional Files…
Artefact-Number - AdditionalFiles - Artefact ID (Folder)
     > Additional Files…
Artefact-Number - AdditionalFiles - Artefact ID (Folder)
     > Additional Files
Download_transcript.CSV
Readme.txt

Checking out a single artefacts with no X-refs:

drafting_zip_folder_structure_01.png PNG image will display here

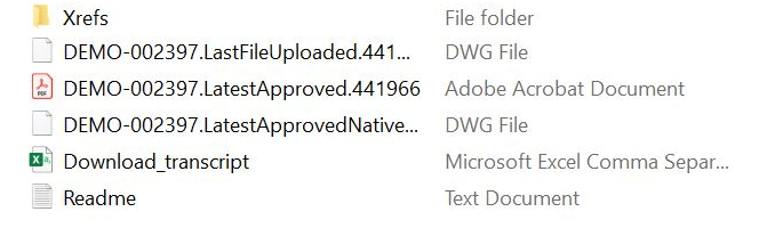

Checking out a single artefact that has X-refs

(If Xref download is enabled, Xrefs will be downloaded in the Xrefs folder)

drafting_zip_folder_structure_02.png PNG image will display here

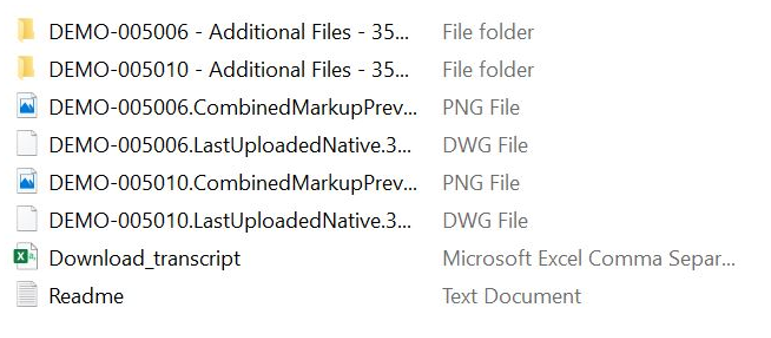

Checking out multiple drawings (aka bulk checkout)

They follow the same convention as a single check out, there is 1 sub-folder per artefact contained in the zip folder.

drafting_zip_folder_structure_03.png PNG image will display here

What are the files?

• Last Uploaded Native : The most recent upload that is a native file (e.g. DWG, DGN, etc. for drawings)

• Last File Uploaded: The most recent upload or check-in (native or non-native)

• Combined Markup Preview: The preview showing a flattened version of all the mark-ups combined

• Latest Approved Native: The most recent approved native file

• Latest Approved : The most recent approved file (native or non-native)

• MarkUp : The latest set of markup applied to the file

• Download Transcript: The list of files of the artefact/s checked out

• Xrefs (Folder): Contains the xref files of the artefact's DWG files (if any exist)
